Paper Band Filter

Short Description:

This machine can filter and remove both metal and nonmetal impurities within cooling liquid effectively by the non-woven on filter screen. As a functional part of various grinding machine tools, it filters cooling liquid thoroughly, extends service life of cooling liquid, enhances machining quality of work pieces and improves cutting environment.

Product Detail

Product Tags

Brand Amho
Model Number XYGL1
Material Carbon steel
Available Color None
MOQ 1 set
QEM service Standard
Packing Plywood case
Payments Western union, Money gram, Paypal,,Wire transfer.
Shipping By sea.By air
Delivery timeCapacity: Within 15working days after your payment.500L,1000L,2000L,3000L,5000L,10000L
Voltage:Dimension:Application: 380V,415V,480V Non-standardFarm,animal husbandry machinery

Performance And Application

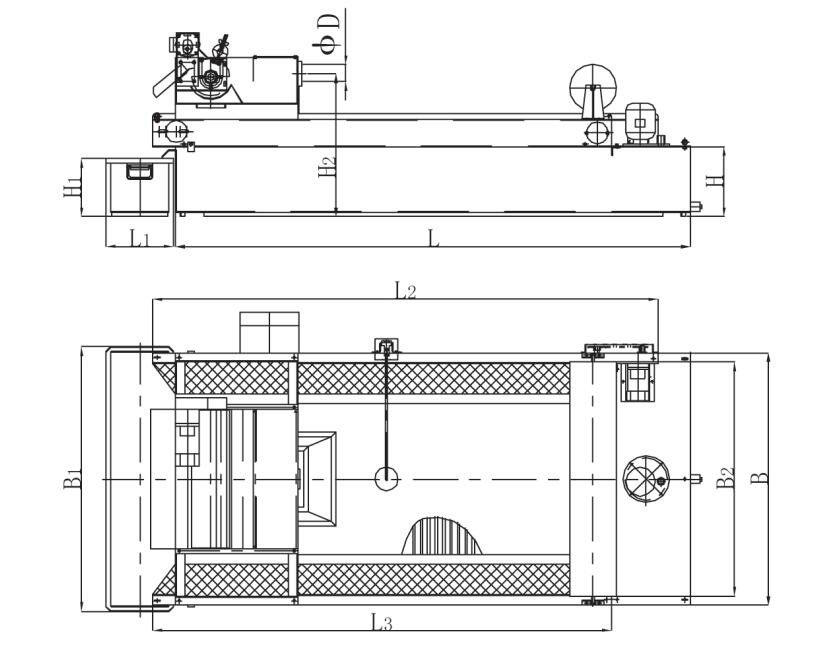

This machine is composed of paper band filter and magnetic separator and combines advantages of the two machines.When processing magnetic work pieces on the grinding equipment,uses will give priority to this machine.drawing

ModelSize XYGL1-25 XYGL1-50 XYGL1-75 XYGL1-100 XYGL1-150 XYGL1-200 XYGL1-250 XYGL1-300
L(mm) 1050 1200 1600 1600 1800 2200 2540 3000
L1(mm) 250 250 250 290 290 290 290 450
L2(mm) 990 1160 1560 1560 1760 2160 2160 2765
L3(mm) 840 960 1360 1360 1560 1960 1960 2565
B(mm) 460 600 600 800 1080 1080 1080 1080
B1(mm) 490 650 650 850 1130 1130 1130 1130
B2(mm) 400 520 520 720 1000 1000 1000 1000
H(mm) 300 300 300 300 300 300 300 530
H1(mm) 250 250 250 250 250 250 250 450
H2(mm) 445 450 450 465 465 465 465 665


It filters by filtering paper,before working,we should first spread the filter paper on the chain network.Then the emulsion or oil flows to the filtering paper.The liquid follows to the liquid tank,and the impurities are segregated on the filter paper.When the impurities on the filter paper become more,the emulsion can not go through,then a liquid pool is formed on the filter paper.The liquid level floating ball goes up,then it drives the paper motor to work.the used-up paper is pulled out,and a new paper will spread on the filter automatically.the process goes around like this.The filtration precision is determined by filter paper.Normally,the filter accuracy is 10-30μm.

Paper band filter is mainly used for filtering the coolant for various machine tool.This device has a pollution,improve effective working hours,reduce the labor intensive of the operator of the machine tool.It also increases the surface finish of the workpiece and improve the quality of the products.


Maintenance Table

Subassembly/ component



Safety instructions/ remarks


-   Drive chain

3 months

Check tension and tighten if necessary, lubricate drive chain

-   Bearing of drive  shaft and guide roller

—- —-

Check wear and play

When conveying belt is damaged, check and replace if necessary

Electrical equipment

-   Motor(s)

—- —-

See operating instructions of manufacturer


-   Wiring

3 months

Check for ruptures and damage

Replace defective wiring

-   Level switch

3 months

Check function

Exceed both switch points by manual actuation


-   Protective gear

3 months

Check function



See operating instructions of manufacturer


6 months

Check for leaks, damage and corrosion

Ensure that no hazardous sub- stances escape

Conveying belt

6 months

Check for damage

Replace conveying belt when damaged
